Light Funnel

Light Funnel

Client

-

Year

2017

Field

Appropriate Technology

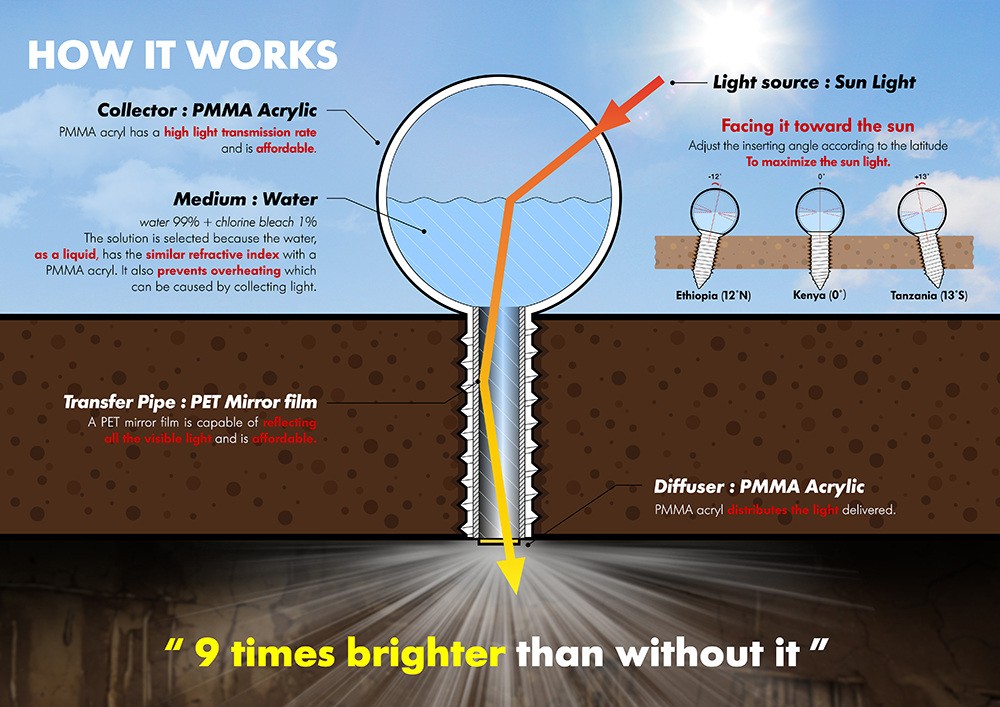

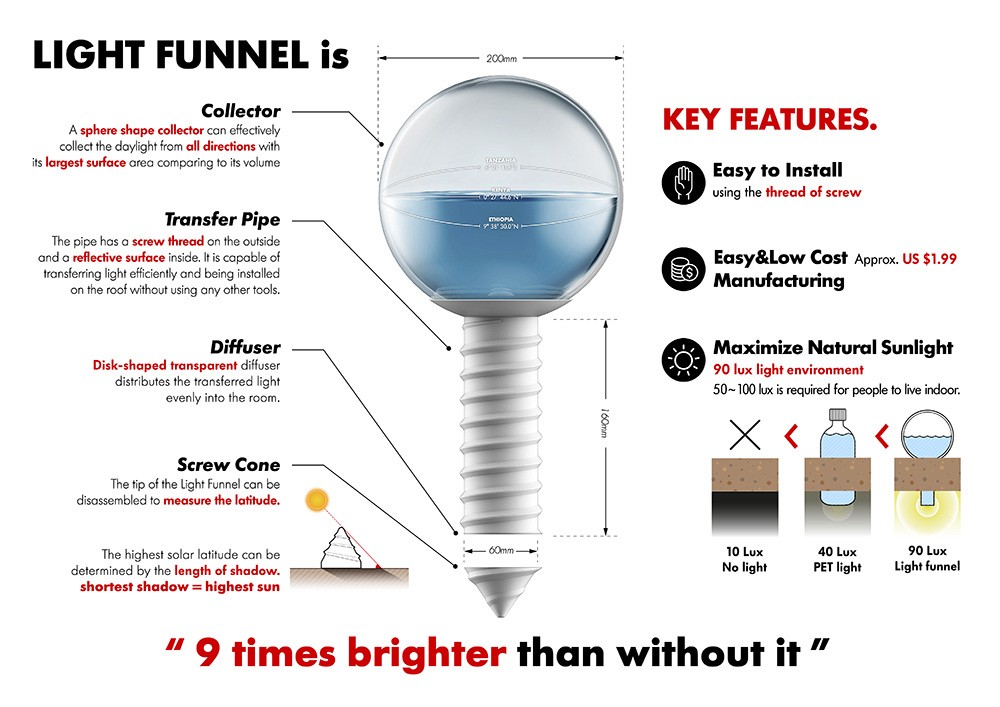

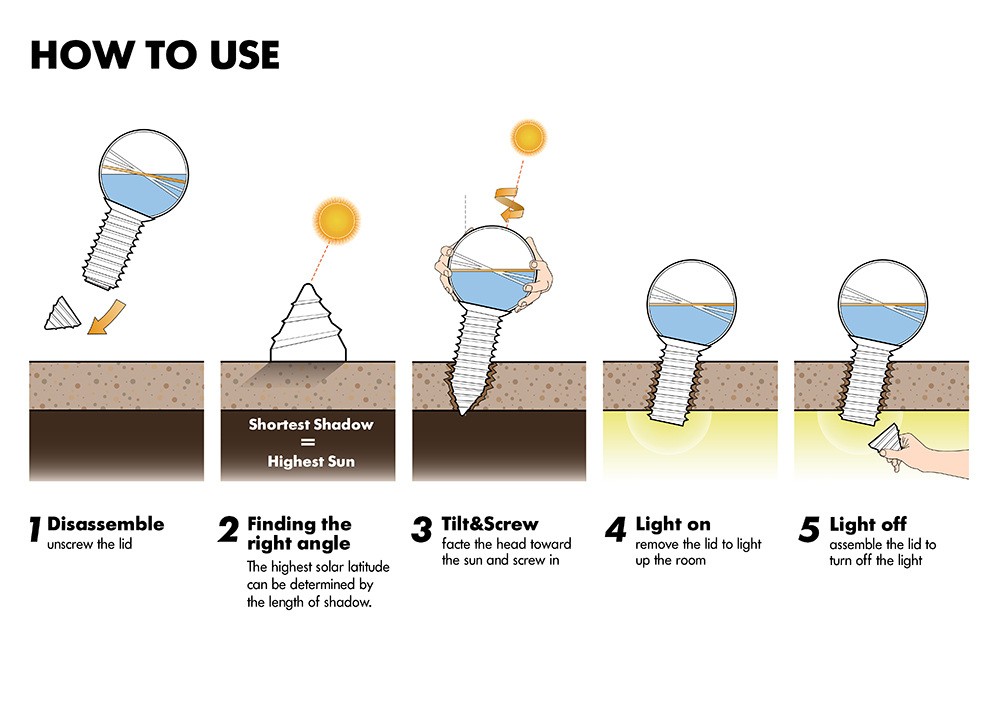

The LIGHT FUNNEL is a new type of daylighting device designed for off-grid areas of Africa. It helps to maximize the natural light effect in the daytime with the minimal house renovation. It consists of a transparent sphere and a reflective pathway. The user can easily install the LIGHT FUNNEL following the instruction printed on the surface. After putting it into the rooftop, the sunlight passes into the house through the water inside. It provides 9 times brighter light environment than without it. Also, once installed, it can be used almost permanently.
